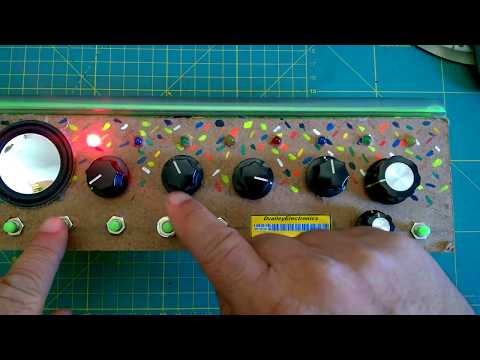

16 Steps Sequencer , Theremin & Synthetizer - Arduino

The Gems of this Project is the " Gooversizer Red ", easily Market found ..., by the way here is an Easy

( D. I. Y .) Version : Have Fun !

1. Arduino Uno - R3
2. 6 Pots ( 10 k )
3. 6 Switches ( n.o. )
4. 8 Leds ( R G B )
5. Power ( 4 AA batteries & Holder )
6. 1 On/Off Switch
7. Scketch

I don't add the Audio Power section for your choice conveniense

between : KA 2206 B( Samsung ) or LM 386( National ) , both Audio Power Amp .

The features list:
– note entry for individual steps or groups of up to 4 steps at once ( programed onto each Switch / pot ) Saved in Epprom

– rests & ties

– pattern length from 1 – 16 steps

– pattern retrigger – tap tempo

– pattern reverse

– pattern transpose (up and down in semitones)

– variable note duration

– swing/shuffle

– PATTERN MODE

– save and recall up to 32 patterns ( Onto Epprom ) ... pre-recorded tones could be recalled " any time !"

– trigger patterns quantised
