TAPSHARE
TAPSHARE is an add-on for round water taps that allows you to use them without a direct hand touch.

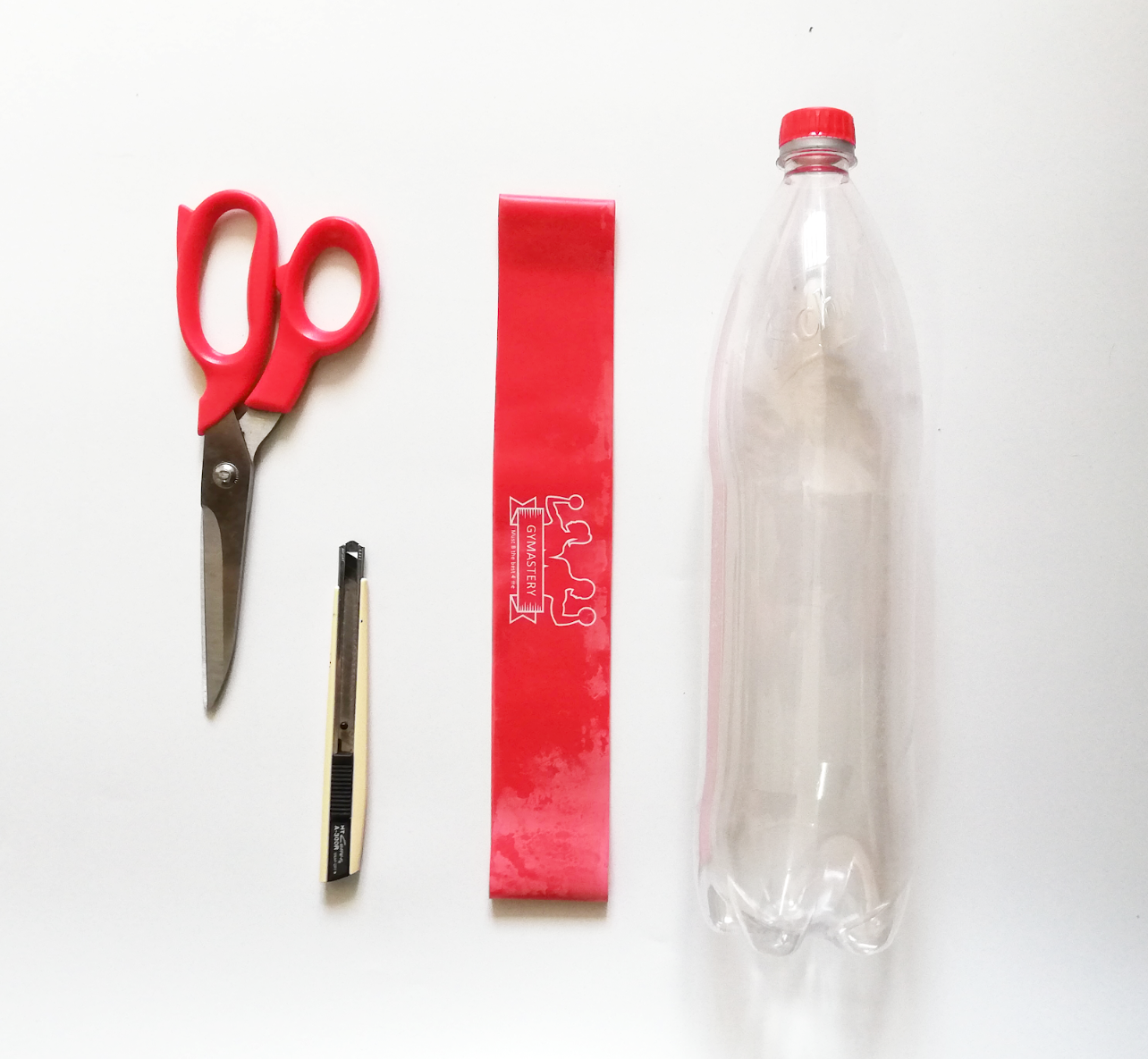

Prepare the Materials:
// Scissors
// Utility Knife
// 1.5 Liter plastic Bottle X3
// “Thera Band” 1mm - (Latex sports band)
// Ruler
// Lighter (optional)
// Hole Puncher (optional)
Caps Manufacturing |

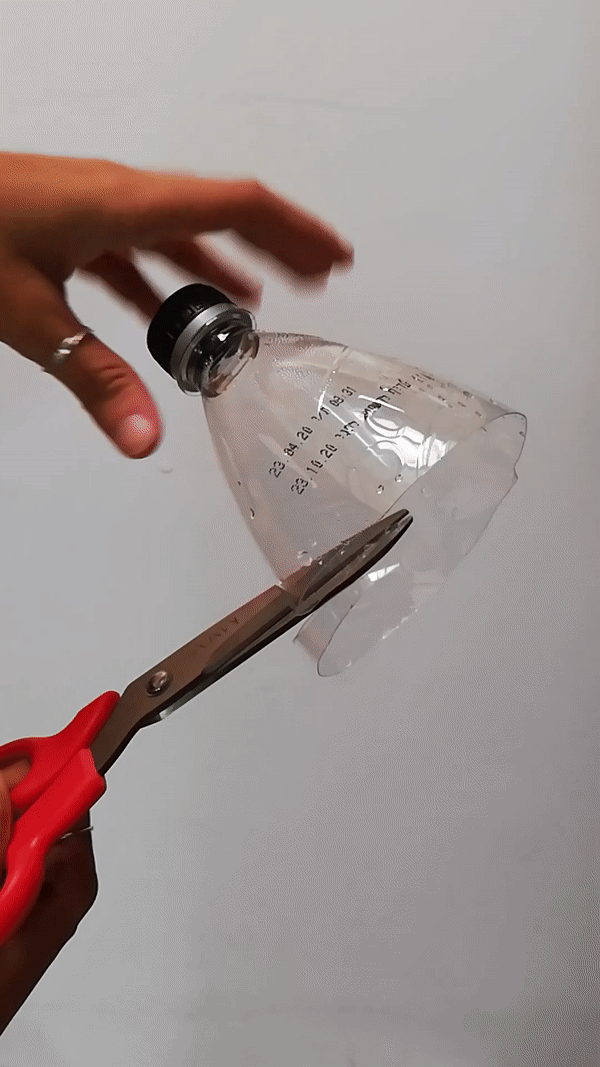

Cut the Top of the Bottle Body
Caps Manufacturing |

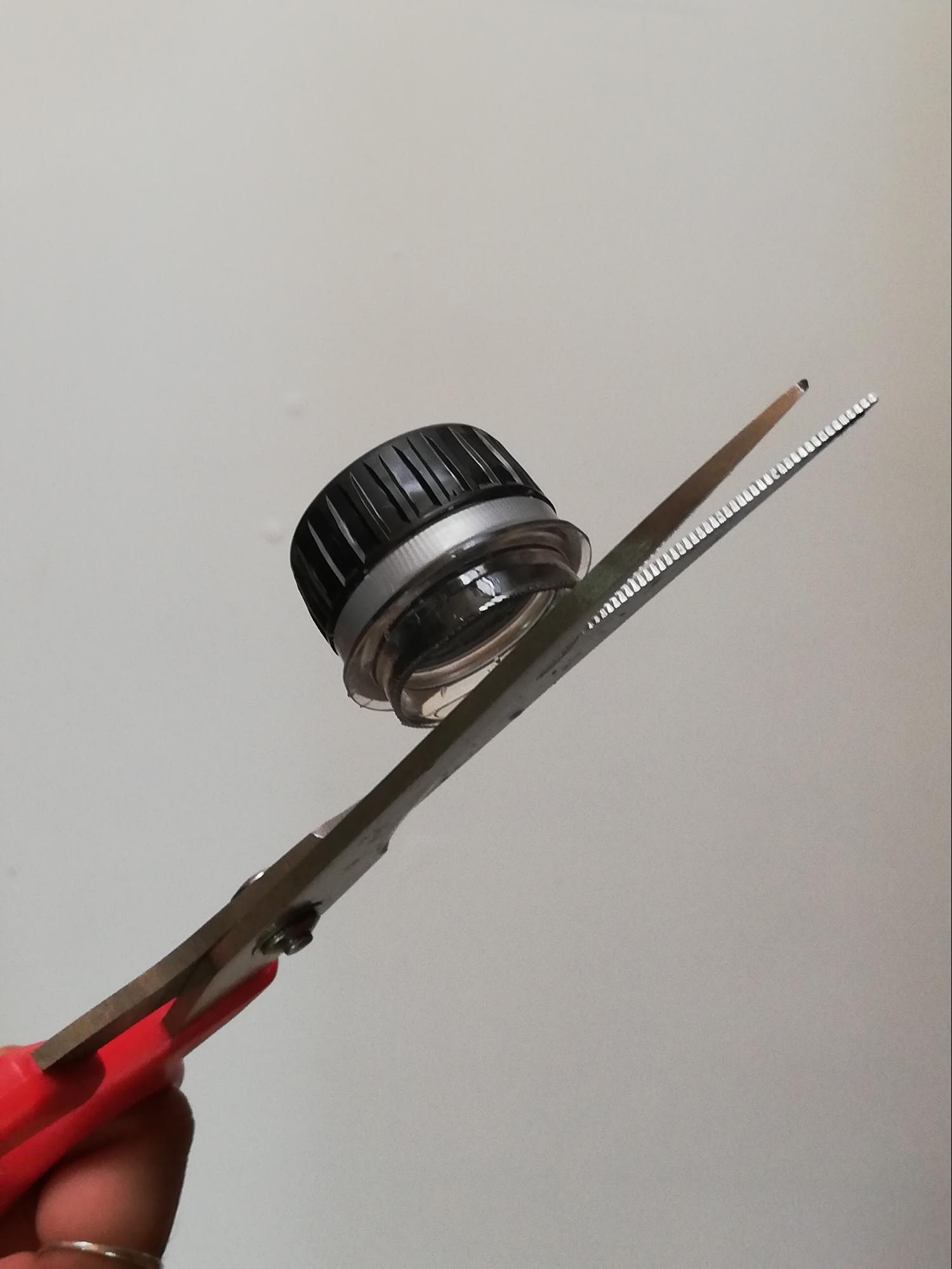

Continue as close as possible to the rim
Caps Manufacturing |
The desired result: 2 mm below the screw.
Make 3 caps.
Band Manufacturing |
Cut the band to a 310mm*50mm strip.

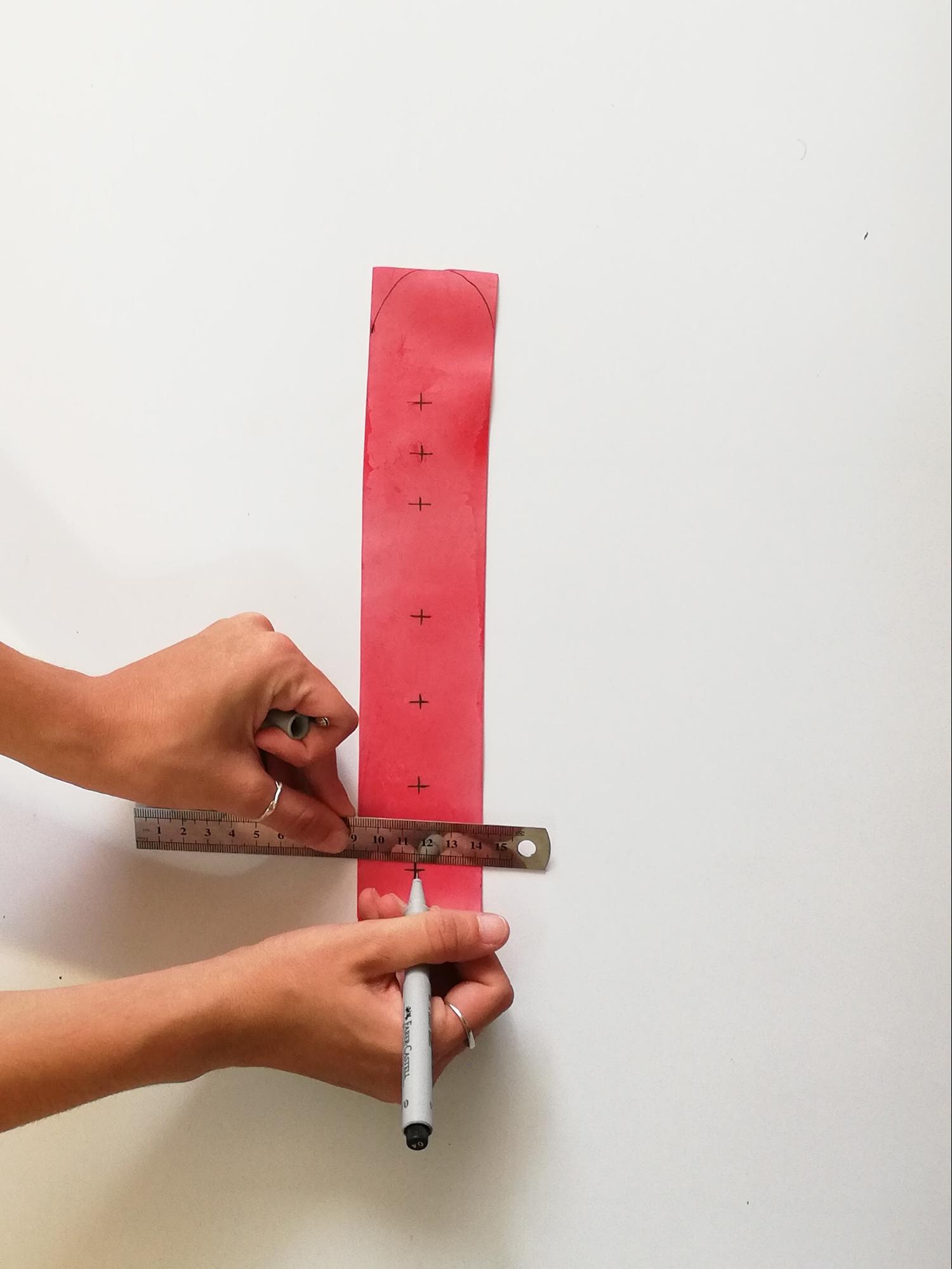

Then copy the markings according to the template with a Marker or a pen.
Downloads
Band Manufacturing |
Start cutting.
Band Manufacturing | (You Currently Have Two Options)
A- ‘Freestyle’ cutting in a circular motion around the mark
B- Fold the band in half (on the long side), and insert to half of the mark (+) below the Hole Puncher. If you choose this option, your holes will come out slightly oval, don't be alarmed it’s completely fine!
Band Assembly |

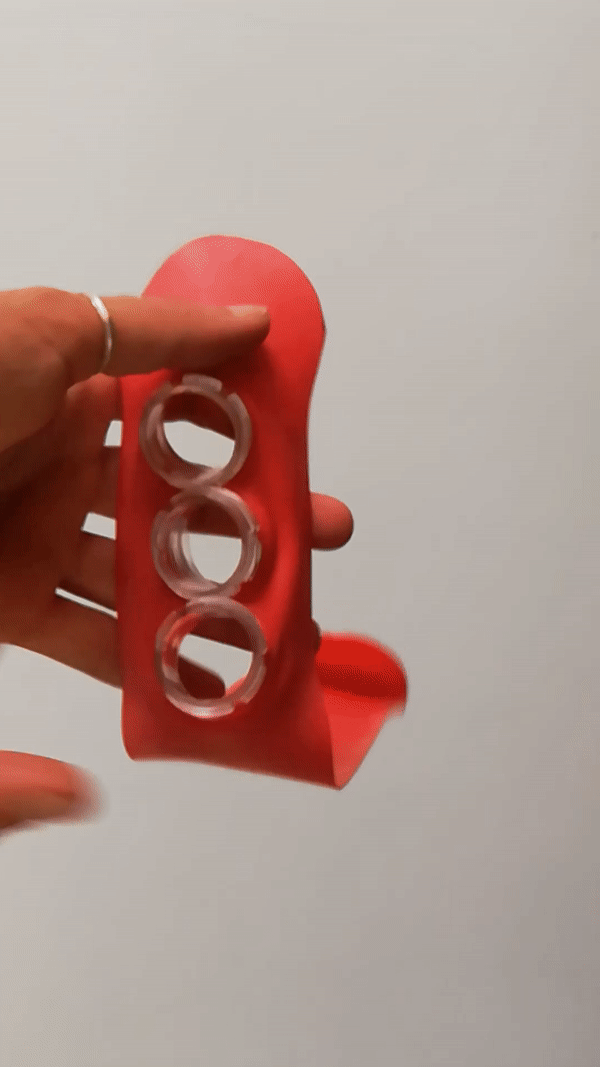

Insert the cap screws through the designated holes.
To make sure this is the right hole, you can check on the drawing.
Band Assembly |

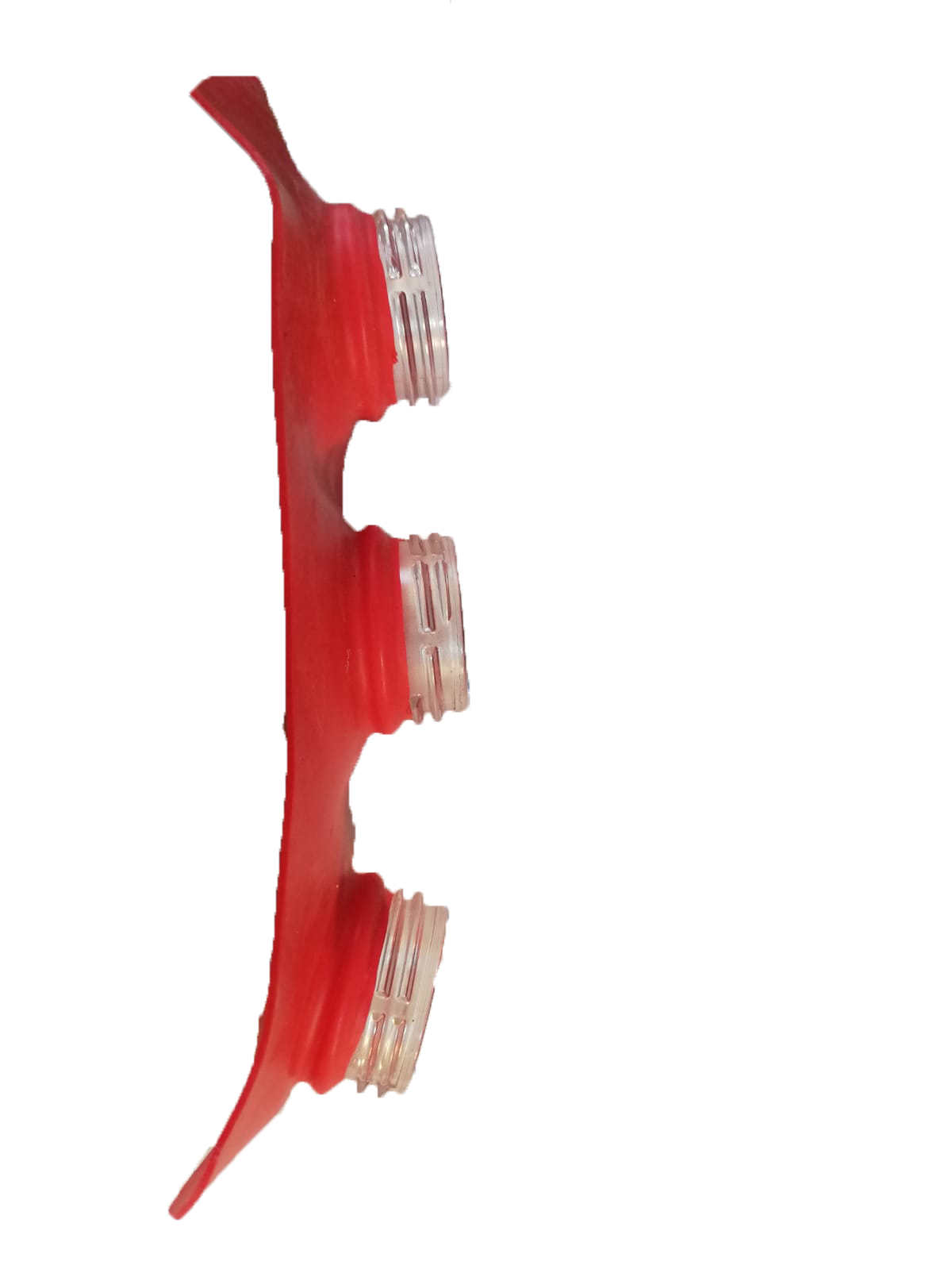

Notice that the caps are uniformly oriented (screw up), and that the band sits above the first helix.
Band Assembly |
Stretch it carefully to make sure the caps are sitting tight.
Caps Manufacturing |
Remove the plastic seal that is attached to the back of the cap
Caps Manufacturing |

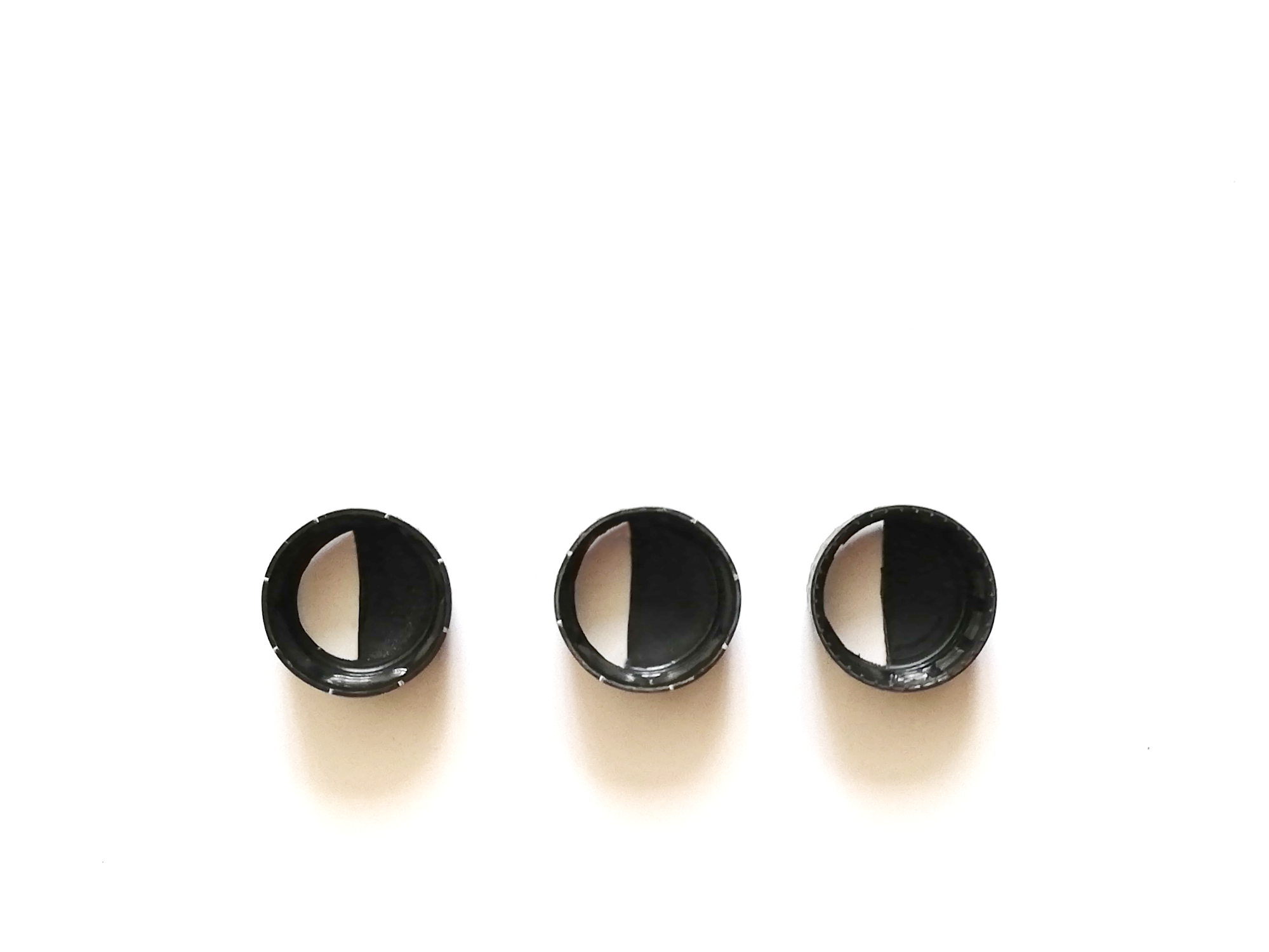

Cut the caps in a half-moon shape.
*If you have difficulty in the initial carving, the knife can be slightly warmed with a lighter.
Caps Manufacturing |
Make 3 parts.
Final Assembly

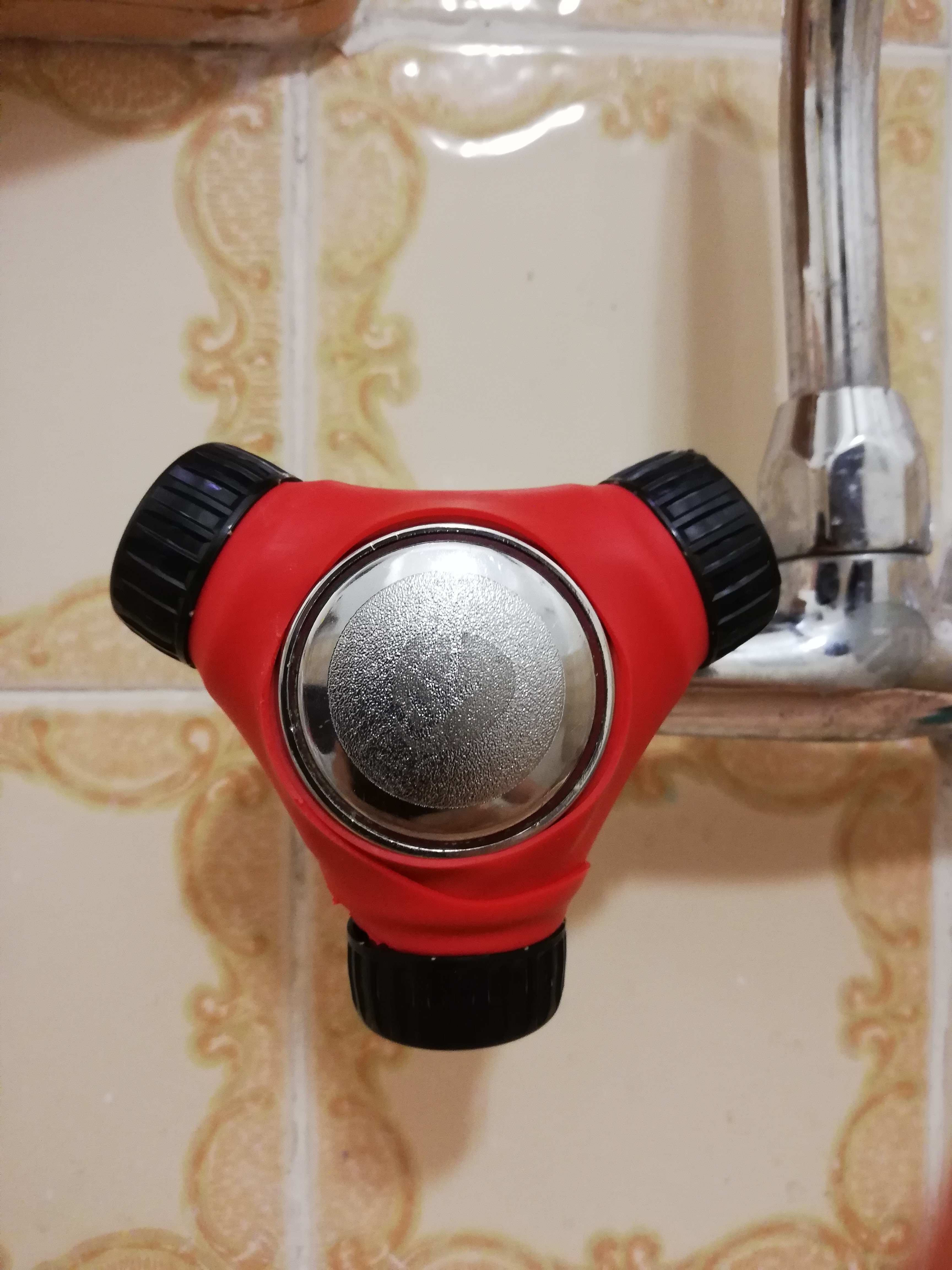

Place the band on top of the tap with the screw facing up. Stretch in a rotary motion.
In the second wrap, lock the remaining holes on the band in the appropriate meetings with the cap heads.
Finally, assemble the caps and lock them in a rotary motion.
Product is fully assembled and ready for use!
