Three Axial Tow Truck (cnc) - PLC

PLC - Three Axial Tow Truck

Hello

The present dissertation deals with the programming of the PLC-PS3 of KLOKNER MOELLER, with both purposes the functionality of a mechanical model, the so-called three-axis transport crane and in our case the transport of metal loads. It is essentially a simulator of a three-axis crane that is often found in heavy industry.

Please Subscribe to my youtube channel and enjoy the video :)

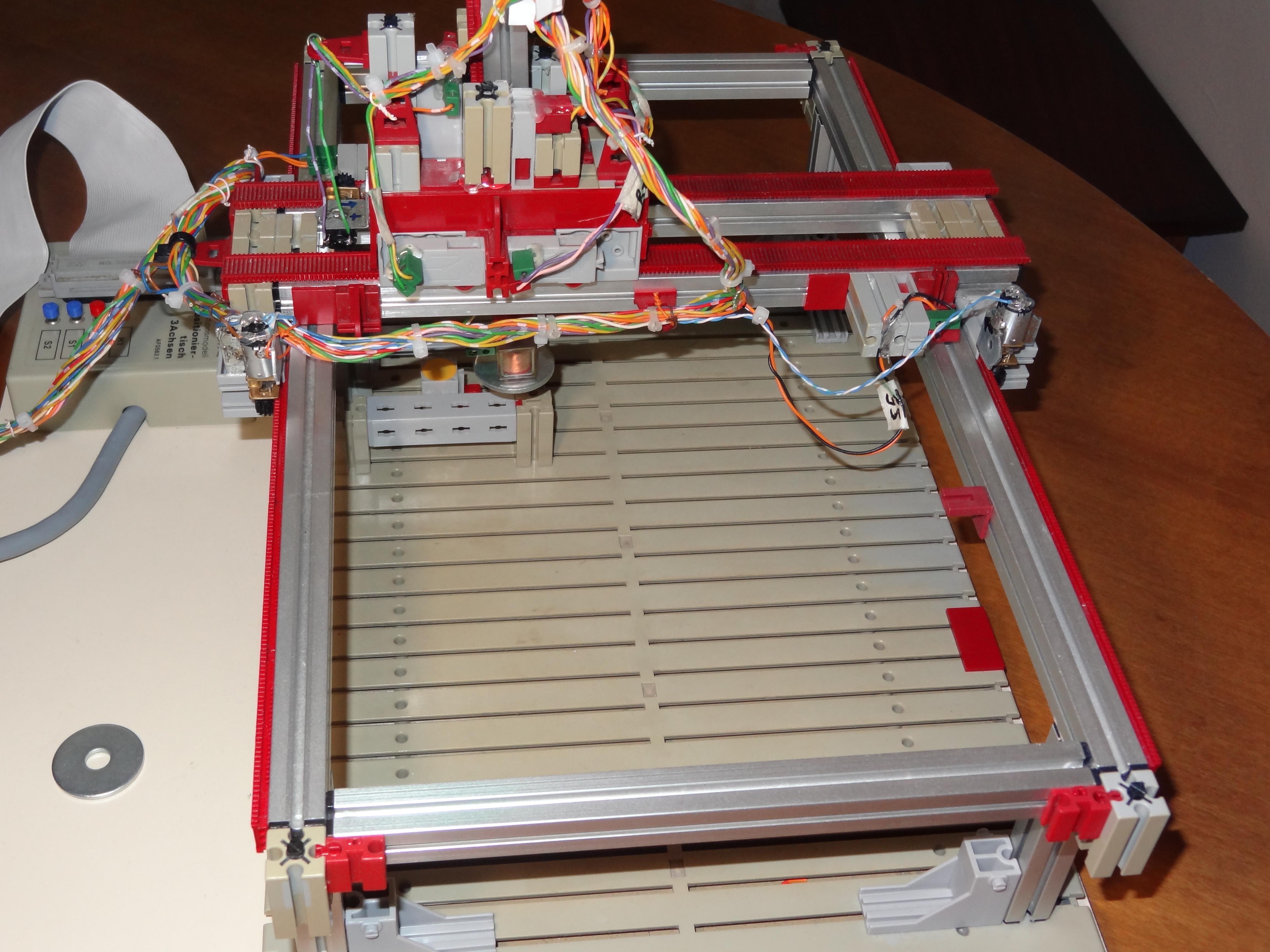

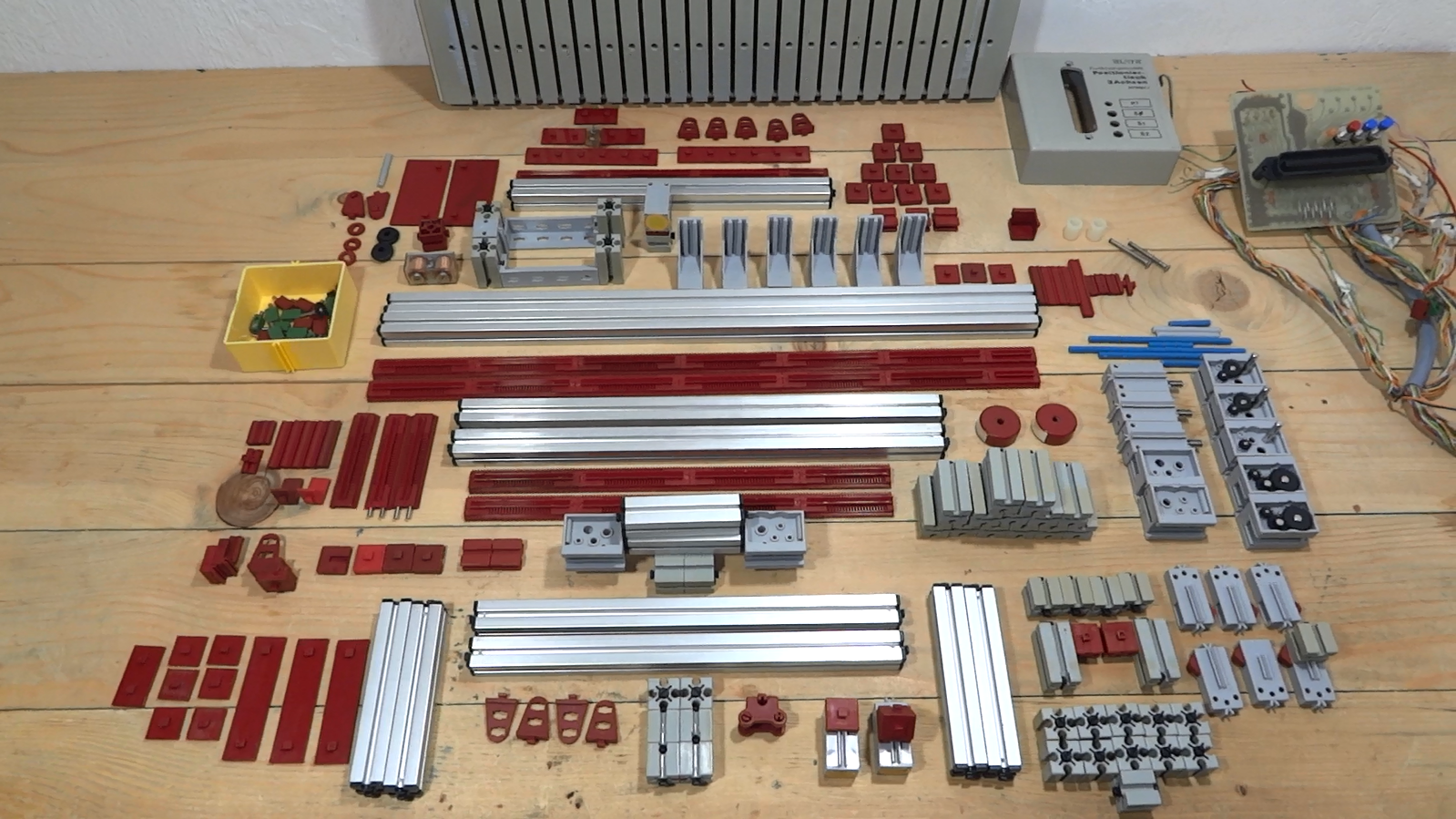

Befor & After

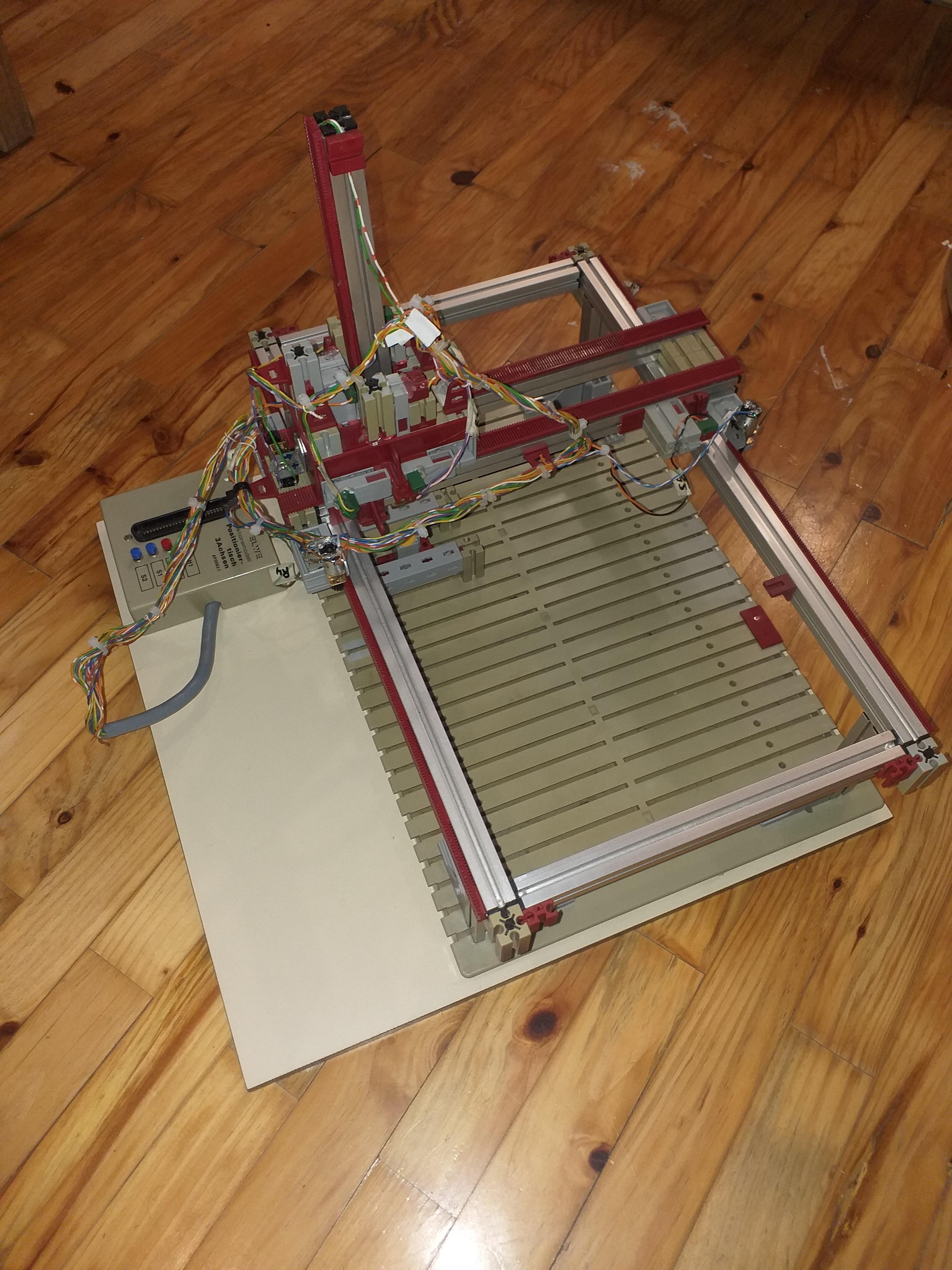

This project is like LEGO

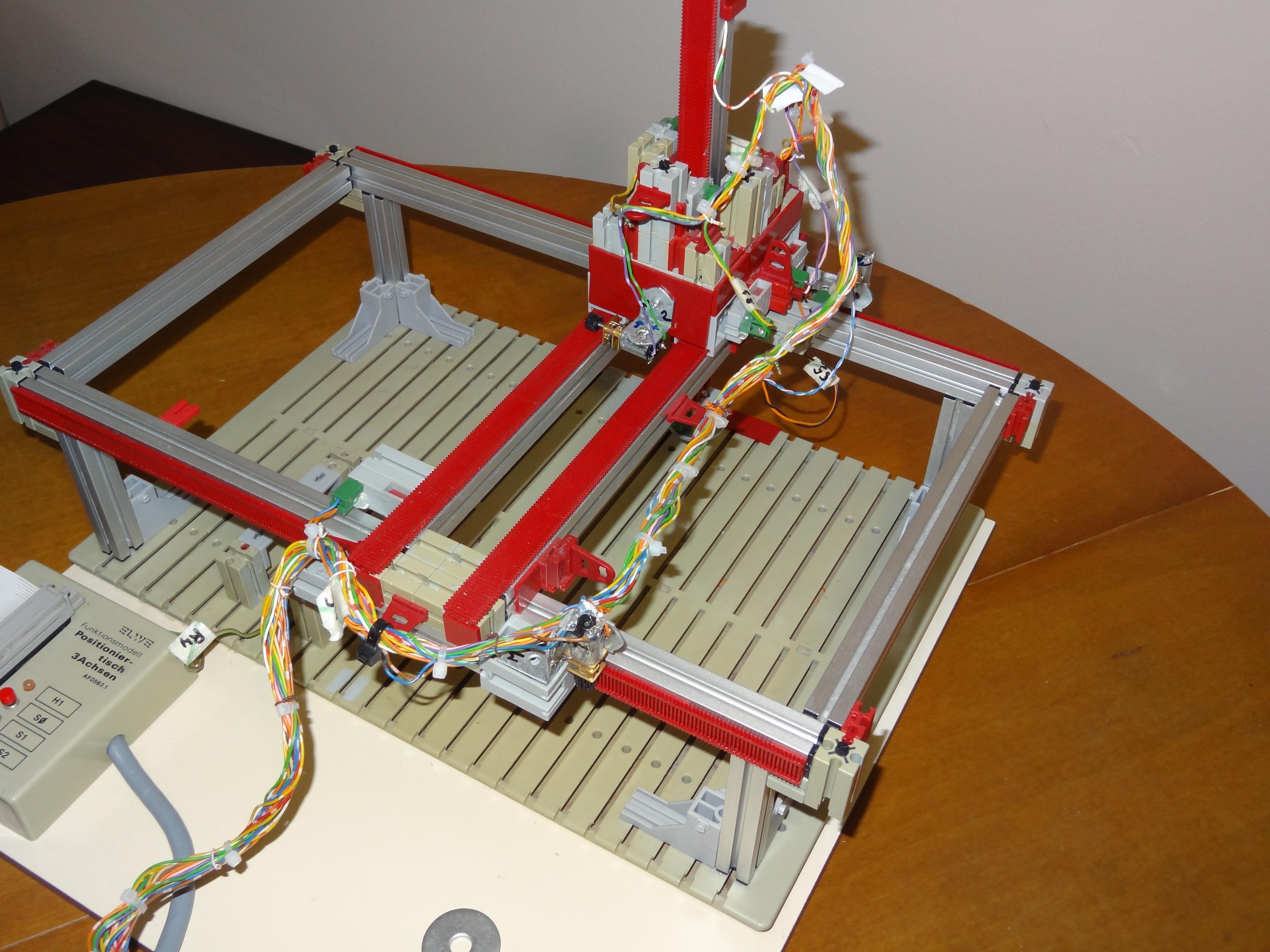

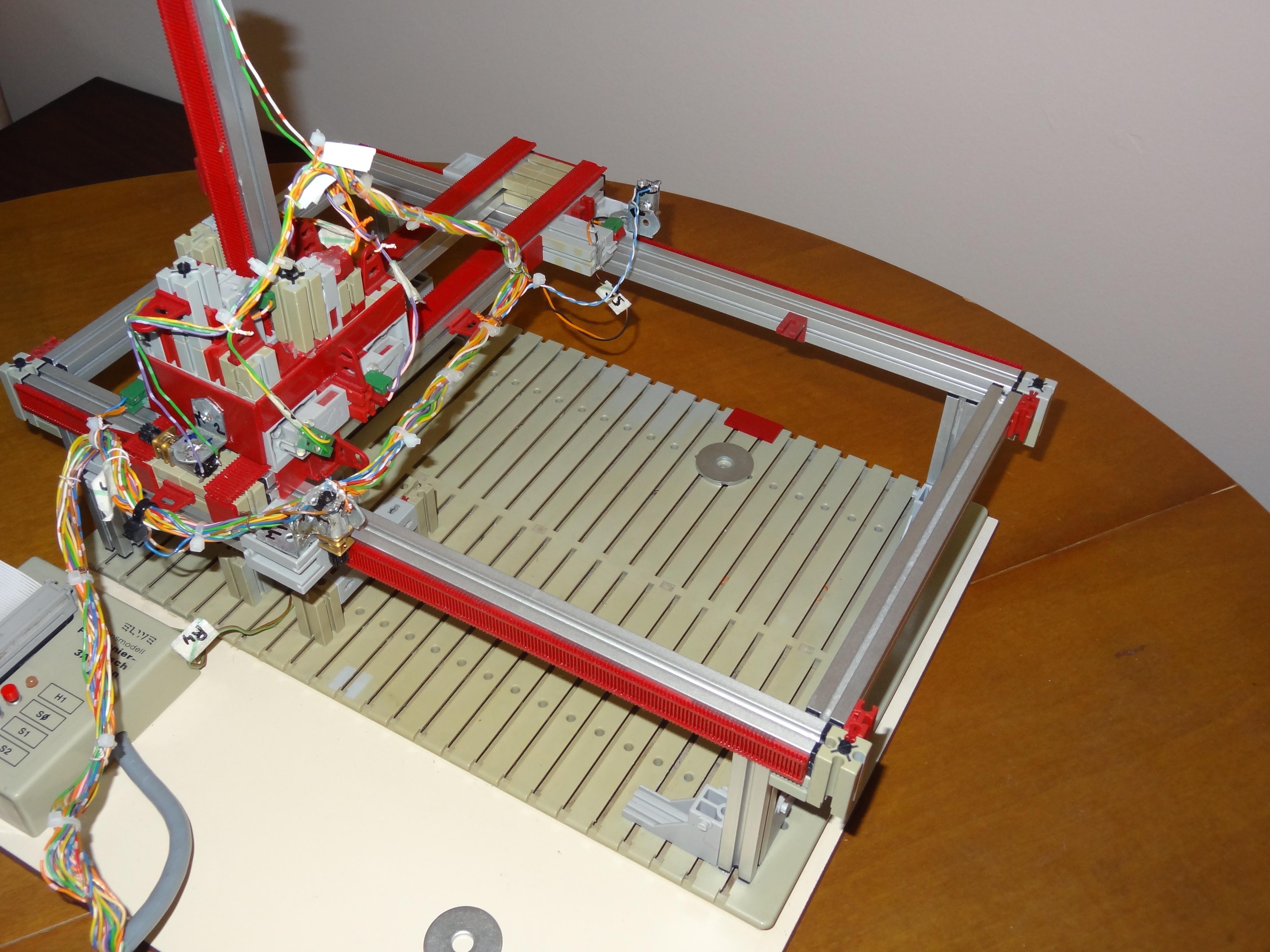

3 Free Moves Like a CNC Machines

MODELO 1.jpg
MODELO 2.jpg

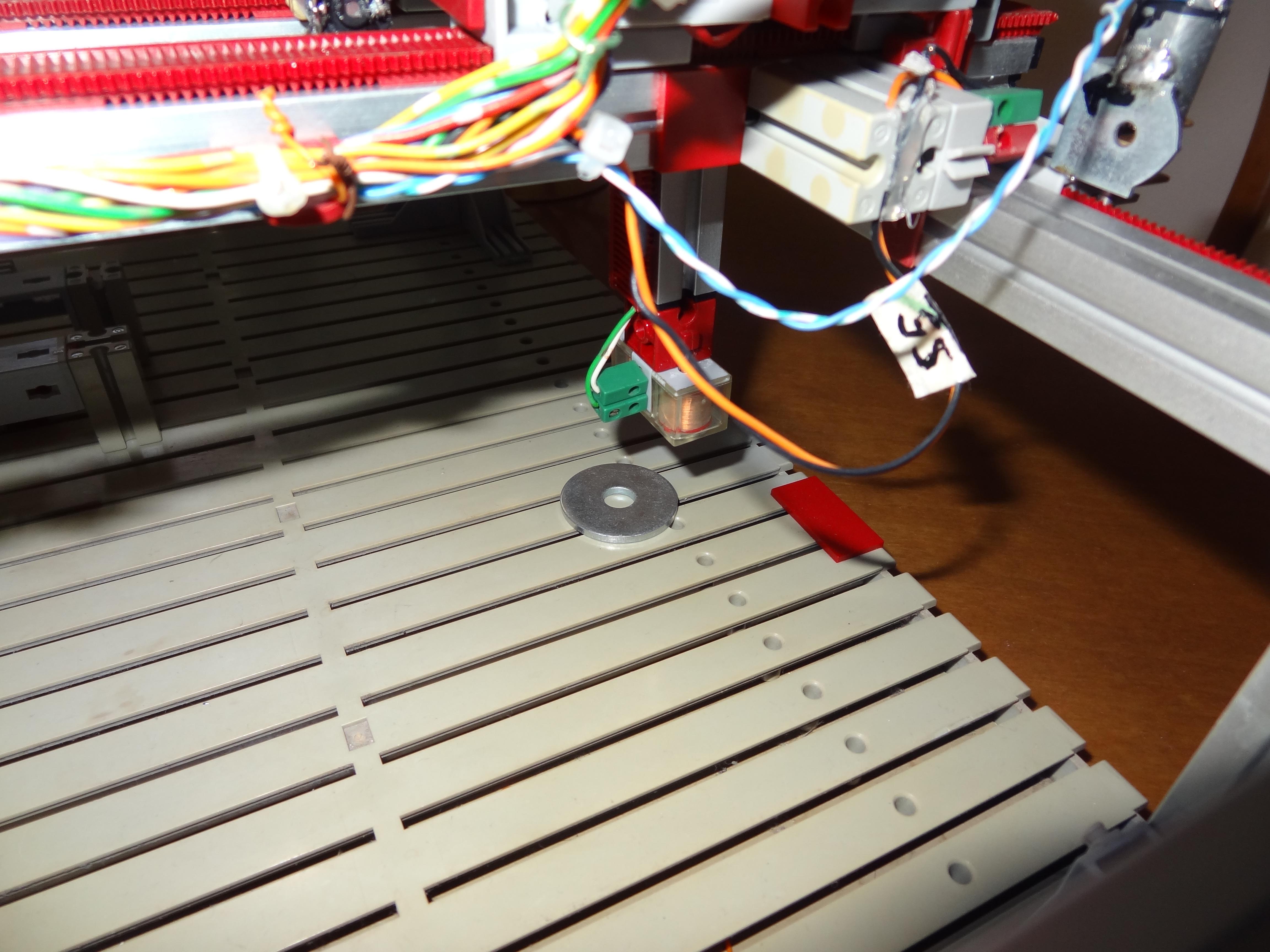

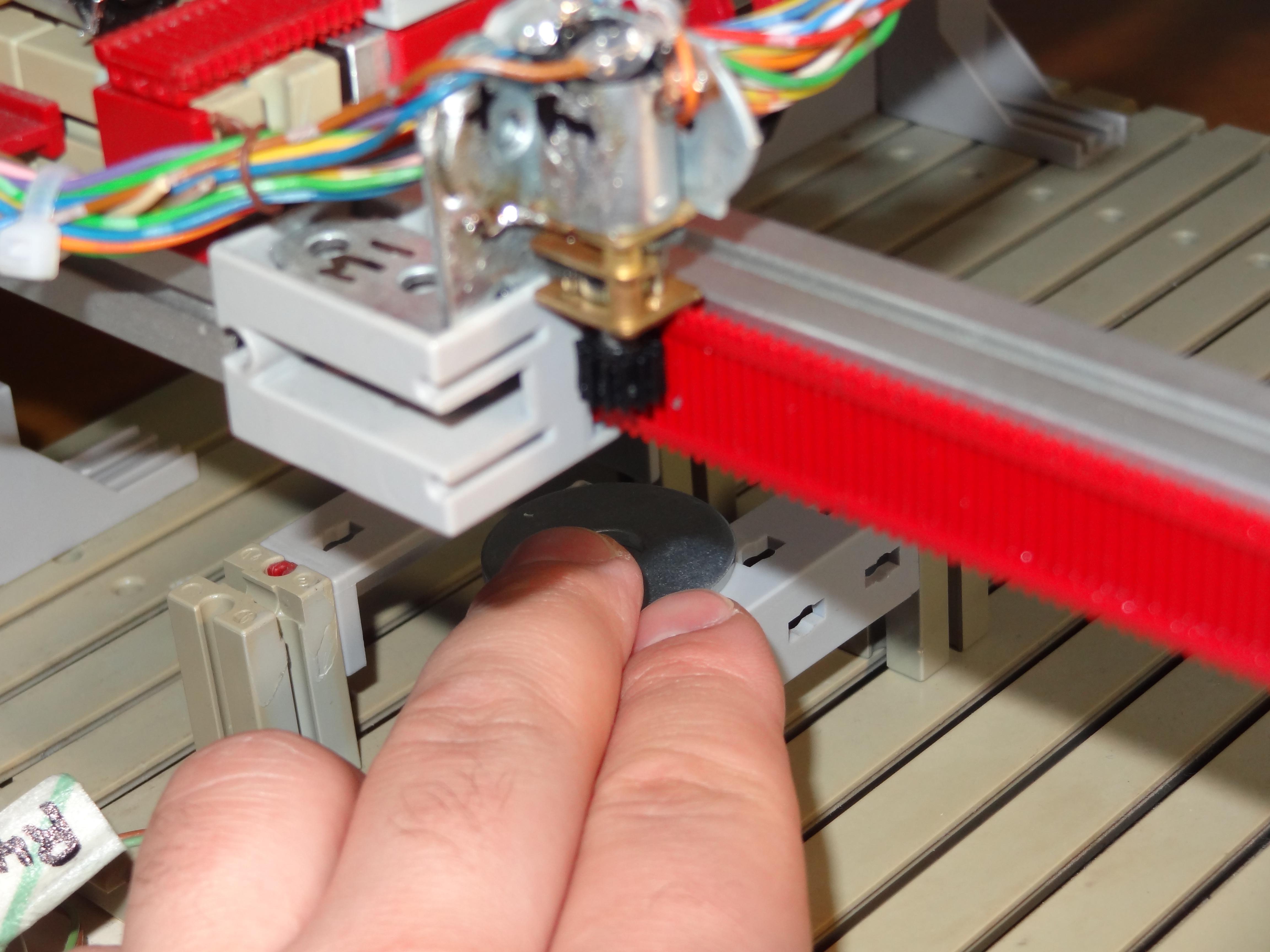

We will programming this to take a load and place it in the other side.

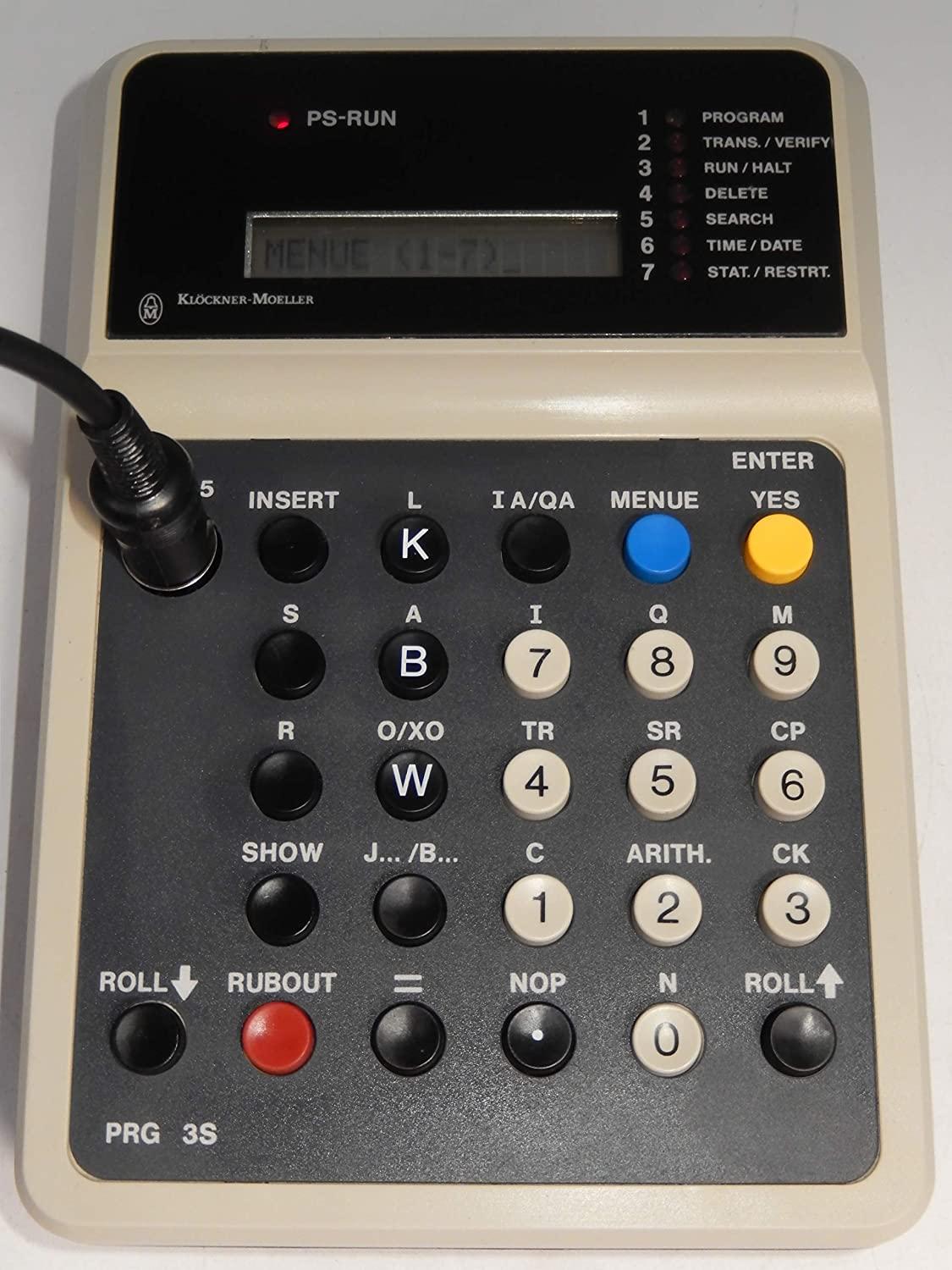

PS3 PLC and Programmer


We will put the STL program in our PLC to command the mechanic 3 Axial Tow Truck

Downloads

STL.docx

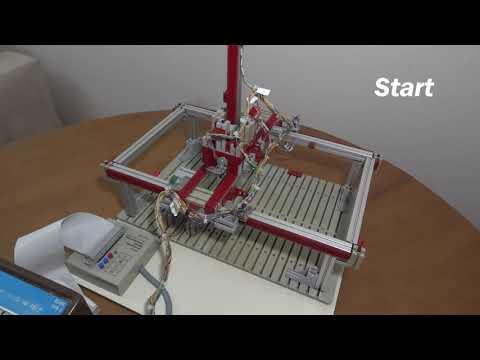

Finish Our Quest


You can see how it start and how it finish this quests.

Thanks for watching if you like it please subscribe to my youtube channel.
