Portable Soup Kitchen

by smogdog in Workshop > Woodworking

18780 Views, 150 Favorites, 0 Comments

Portable Soup Kitchen


Another box project from leftovers in my workshop. The sketch was made so I knew what was needed to make this a fully portable soup kitchen. I wanted it all to fit in and around the box. I got the stove a while back and it has just been sitting there waiting for me… it's got my name on it!

I started cutting the box into 3 pieces and mad it a foldable design, the hinges were cut off from an earlier project. I just rounded the edges with a file and the were perfect.

Supplies

Since this is a scrap project, from the build to cooking soup, you should take what you have leftover and put it to use in your own unique way. But I would really love to see your take on a portable kitchen.

I've used pretty simple tools, I used a router for making the boiler/lid fit on the back of the box. Other than that I used nails, glue and a jigsaw + +

Scraps Bonanza!


For some, it might be a mess/trash, but me… I can't do without scarps and leftovers. I have boxes, drawers, and bags full of pieces that someday might come in useful. Cutaways from woodworking projects, metal pieces, leather scraps, bits of wire, the list goes on.

Contents of a Soup Kitchen

Portable Soup Kitchen in the making

In the video, you can see me putting the box together and making soup at the same time (blow torch used to speed up the stove). This was for me a test to see proof of concept. From there on much has been added and tested.

I knew I wanted to serve two people, so I could not just eat out of the boiler! I laid everything out to get an overview and see where I could put everything.

  1. Stove
  2. Pot
  3. Knife
  4. Soup ladle
  5. Bowl X2
  6. Soupspoon X2
  7. Electrical cord
  8. Veggie shaver
  9. Cutting board
  10. Box for all of it

Make Soup - Not War


Why Soup? Don't get me started, I love soup! I've got a project running involving food scraps, making sure we start using our leftovers and cut the food waste. So Soupr has a goal of making leftover soup recipes available to the whole world. And everyone is invited to join and share their favorite soup stories and recipes:-)

Making a soup kitchen is one way of showing my love for this great meal. I will be traveling around and making soup on whatever I can find in people's fridges.

I Made My First Knife!

Knife test

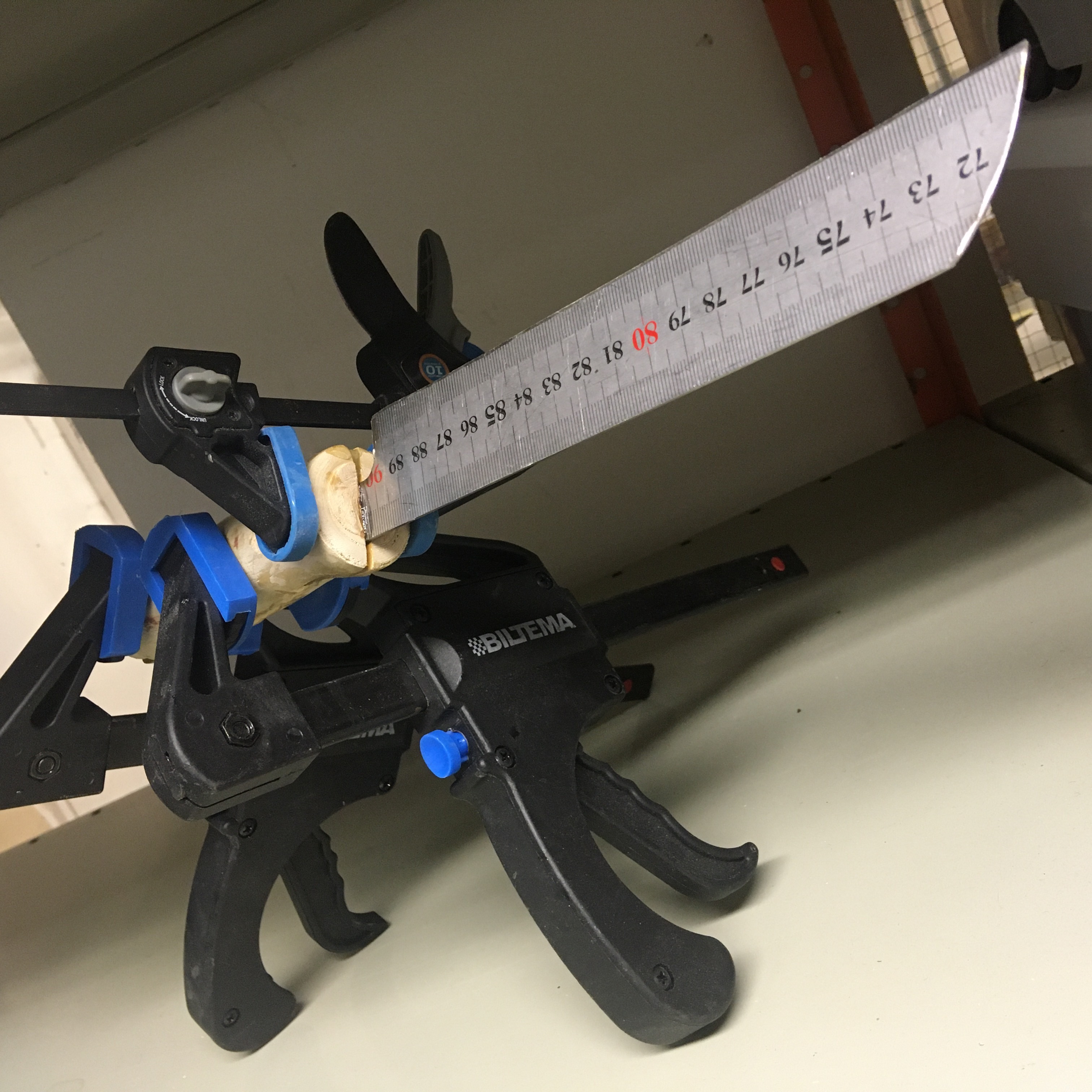

A beat-up ruler gets a second life… I've been wanting to make a knife for a while now, but here I found the perfect blade with some milage. I cut it with my angle grinder and sanded it down to what I thought was a cool Japanese inspired knife blade (without the razor-sharp edge:-). Sure enough, I had some leftover turned piece that would be a perfect handle. I measured and drilled two holes and then glued it all up with epoxy, when hardened, I sanded it down again. Placing the knife on the outside of the box a used a piece of leather that I soaked and formed around the knife pocket.

All ready to assemble!

Salt'n Pepper and More…


Turned out there were a lot of smaller things that had to be added and fixed for the kitchen to be ready for cooking. The orange piece in front folds out and holds the stove straight. The power cord can be pulled out through a small hatch. To easily get the cutting board off I drilled a hole for my finger pull it out.

I bent two metal parts to keep the stove in place, as I screw the plates down they tighten the stove to its position. Important to have it fold up without catching the small inlay box.

For all my projects I add graphic details as the last step, kind of like putting permanent makeup on.

Can Opener


I've got a stack of bamboo that I've turned into handles, legs, and decor for other builds. I was missing a can opener so that was the next mini-project. A piece of 1mm metal would be the locking mechanism. I hammered it all in place and glued the opener to the handle. A pipe tightener kept the handle from splitting when inserting the metal.

A Not So Secret Compartment…

Screenshot 2020-05-11 at 20.45.36.png

What's inside? Well, let's open it… ooohhhh there is a light that turns on automatically! But wait there is more….

A spring holds 2 drinking glasses in place.

An insert for herbs and Tabasco to save any soup chef in dispair.

The inside of the door has 4 shelves for meat, fish, chicken, and vegetable broth.
Broth shelves on thingiverse: https://www.thingiverse.com/thing:4356457

And last but not least, a snaps bottle, a few droplets of Swedish snaps is a great way to end a soup dinner.

Adjustments…


To make this soup kitchen fully portable I have a methylated spirit burner that fits where the cooking stove is now. You never know someday you might go off-grid:-)

I also put the soup ladle on the side to fully open the box up. I cut two pieces at 30 degrees on the outside and 15 degrees on the inside, enough for the spoon handle to slide in.

Now I'm ready to give others a taste!

A Soupr Soup Kitchen

Soup Kitchen Spin

I'm soupr happy with this project and can't wait to bring the love for soup to the masses:-) I'd be really happy if you tag along.

For updates check out my Instagram flow here: https://www.instagram.com/smogdog
