Vibration Sensor
![Screenshot (13).png](/proxy/?url=https://content.instructables.com/FNG/ZS5S/IRG4HDVH/FNGZS5SIRG4HDVH.png&filename=Screenshot (13).png)

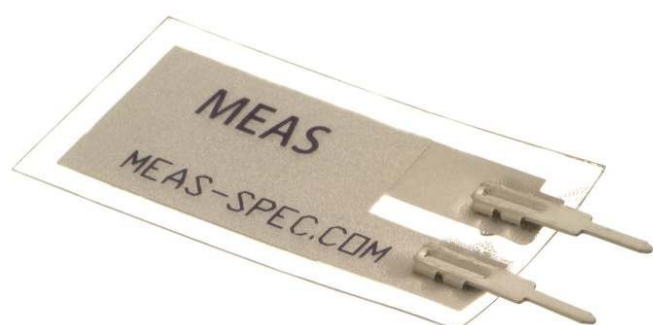

![Piezo vibration sensor](/proxy/?url=https://content.instructables.com/FL0/SAWF/IRG4HG9V/FL0SAWFIRG4HG9V.jpg&filename=Piezo vibration sensor)
The piezo sensor is usually used for flex, touch, vibration and shock measurements. A small AC and large voltage is created when the film is touched or moved.
Downloads
What You'll Need
Breadboard
Jumper wires
Piezo film vibration sensor => http://uk.rs-online.com/web/p/vibration-sensors/89...
Dual Op Amp (LM358) => http://uk.rs-online.com/web/p/operational-amplifie...
Zener Diode (5.1v)
Capacitor: 100nF
LED
Resistors: R1: 1MΩ
. R2: 100KΩ
R3: 1KΩ
Rf: 200KΩ
Rpot: 100KΩ (potentiometer)
RL: 220Ω
The purpose of the Zener Diode is to protect the IC from large voltage spikes
The capacitor serves as a DC decoupler
The Variable resistor (potentiometer) adjust the threshold
![57a35524937ddbdab50011ed.jpeg](/proxy/?url=https://content.instructables.com/FMY/C7YM/IRG4HEYC/FMYC7YMIRG4HEYC.jpg&filename=57a35524937ddbdab50011ed.jpeg)
![57a3554050e1b65b06000005.jpeg](/proxy/?url=https://content.instructables.com/FOG/RHC0/IRG4HF0X/FOGRHC0IRG4HF0X.jpg&filename=57a3554050e1b65b06000005.jpeg)
The LM358 is a dual Op Amp, we'll be using it as a non-inverting amplifier and a comparator
The gain(A) of the amplifier can be changed to suit your need. All you have to do is change the values of R3 and Rf.
A = 1+(Rf/R)
In this circuit, the gain is 201 therefore: 201=1+(Rf/R) {choose a value for R and the find Rf or vice-versa }
Circuit Diagram
![57a354e445bcebdf3e00006f.jpeg](/proxy/?url=https://content.instructables.com/F85/8R6H/IRG4HEWK/F858R6HIRG4HEWK.jpg&filename=57a354e445bcebdf3e00006f.jpeg)
