Vibrobot
This is a very simple Robot. Vibrobot is an extremely simple form of walking robot. It is one of the simplest of all mobile robots, both in its function and its construction.
Materials:
- computer fan

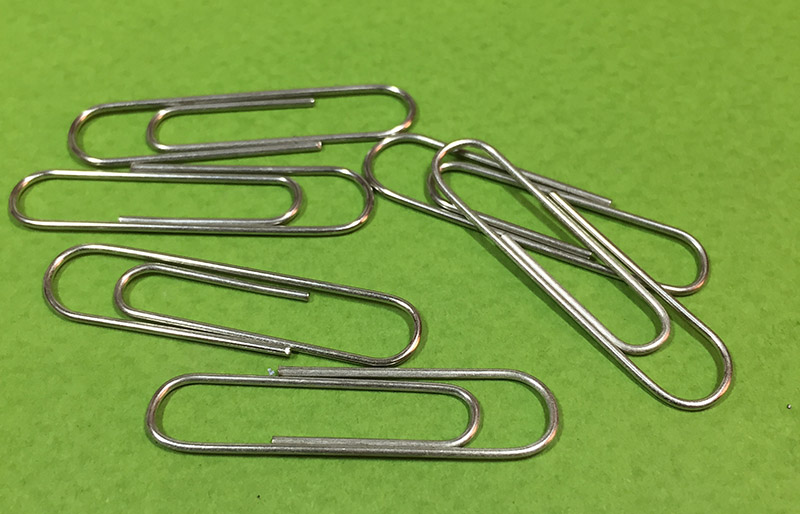

- paper clips
- hot glue
- switch (rock switch)
- Wires
- hard wire

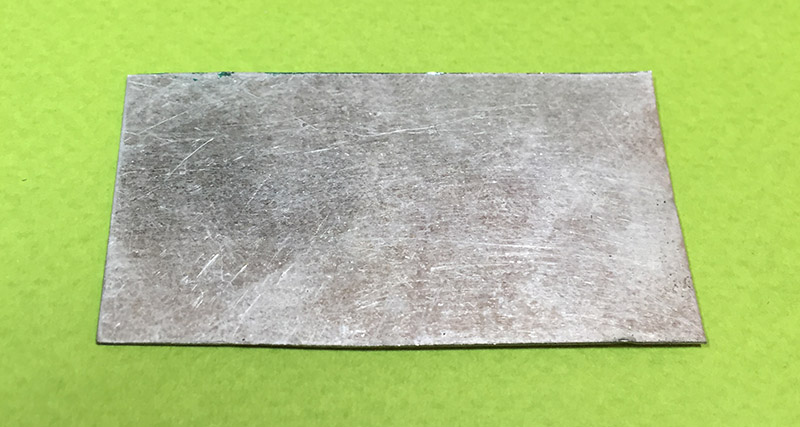

- galvanized plate (about 3 x 5 cm)
- red LED
- 1K ohm resistor
- glue cap (or other cap)
Downloads
Eyes
Solder two LEDs and resistor like schematic and photos.
Neck
form a hard wire like pic for neck

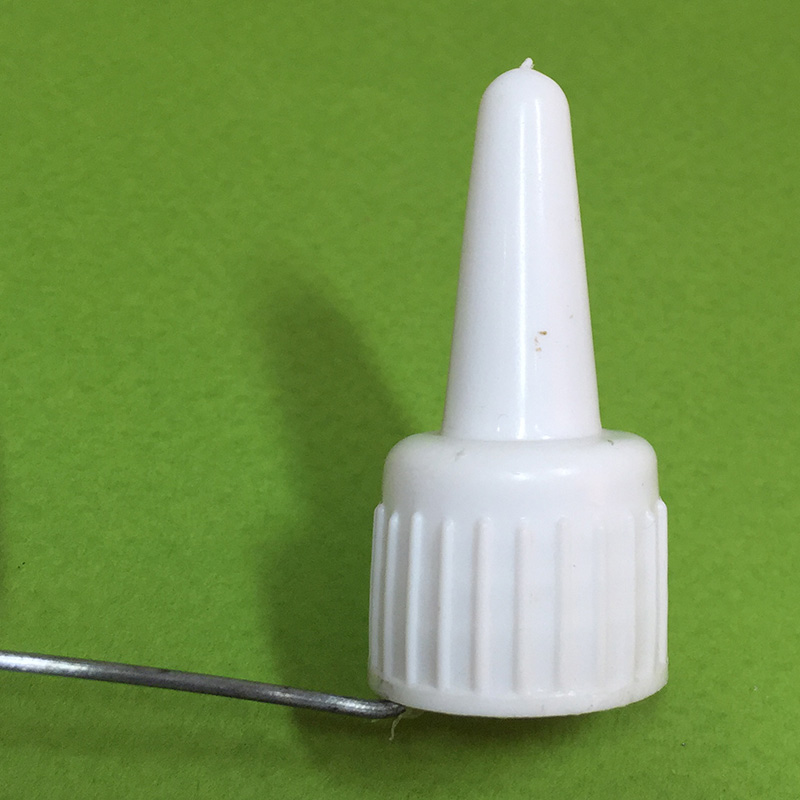

use a glue cap (or similar) and glue to wire for face
glue LEDs to cap

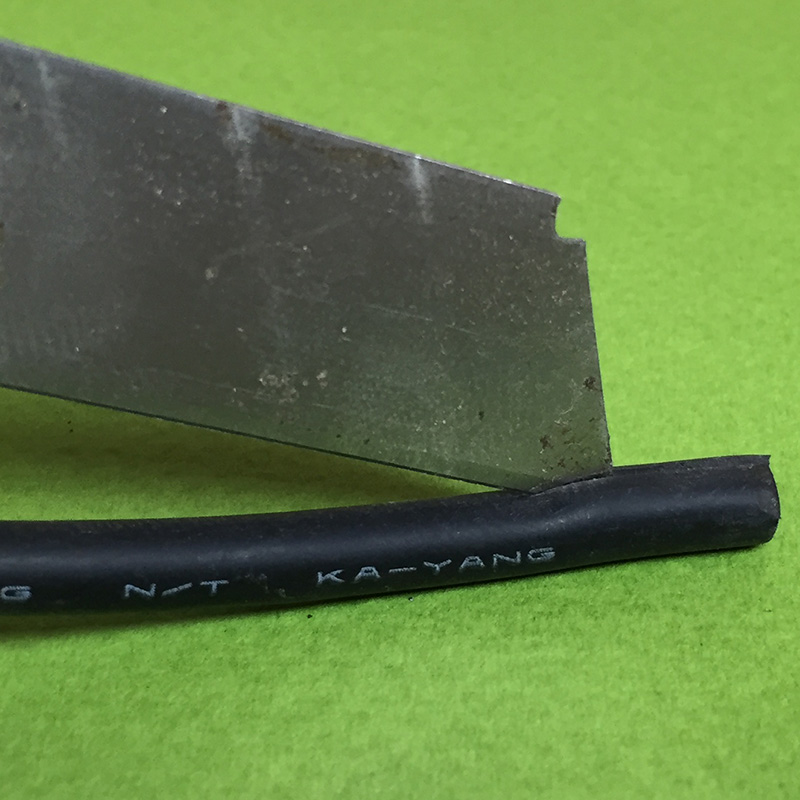

cut a wire strip and cover the hard wire
Vibrator
use a 12v computer fan as a vibrator
glue a screw (or two screws) to fan blade

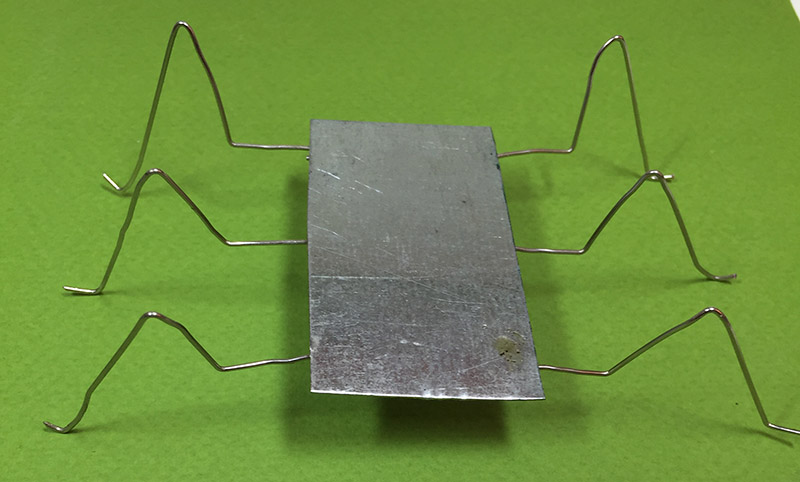

Legs

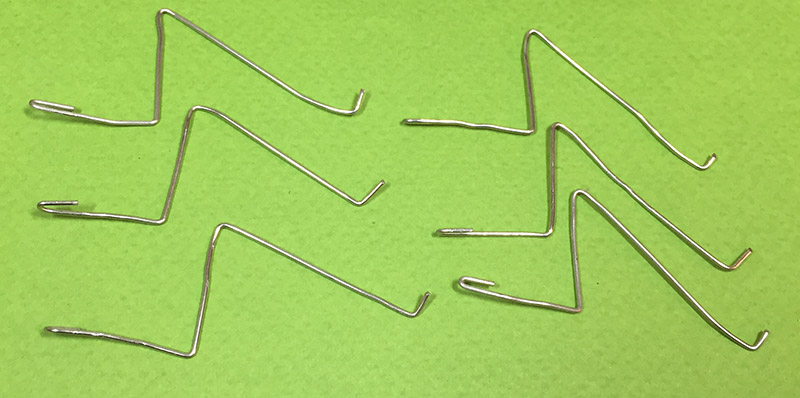

use 6 paper clips and straighten them and form like pics

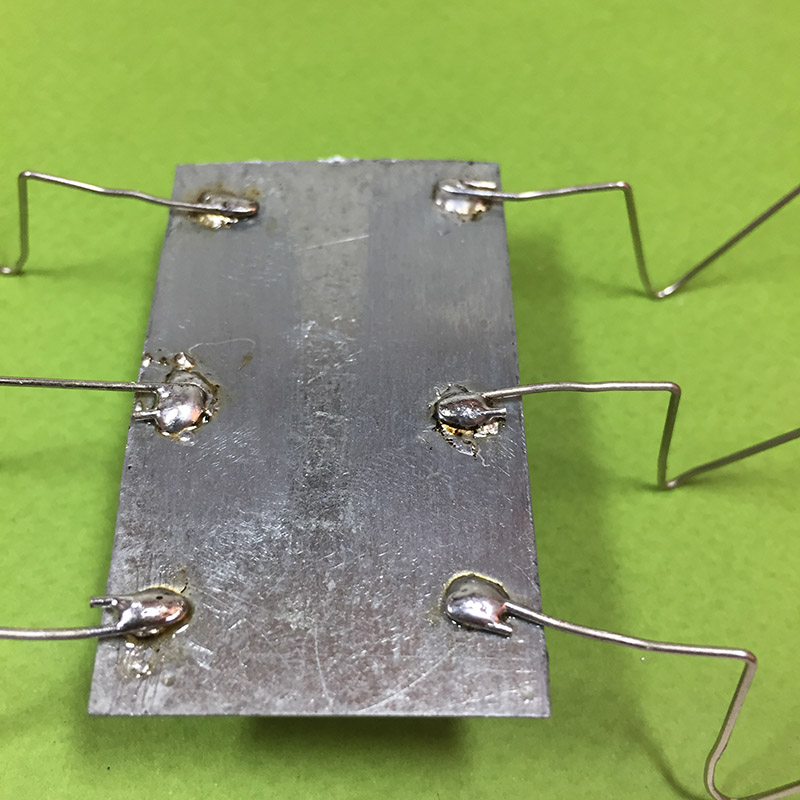

solder legs to galvanized plate
solder a rock switch to galvanized plate
Soldering

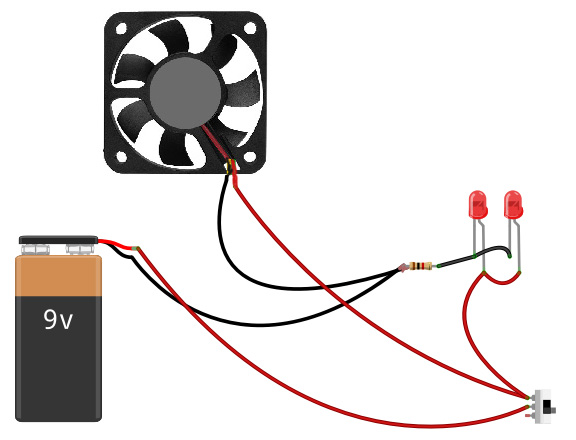

solder LEDs(eyes), Fan, Switch and battery together like picture and schematic

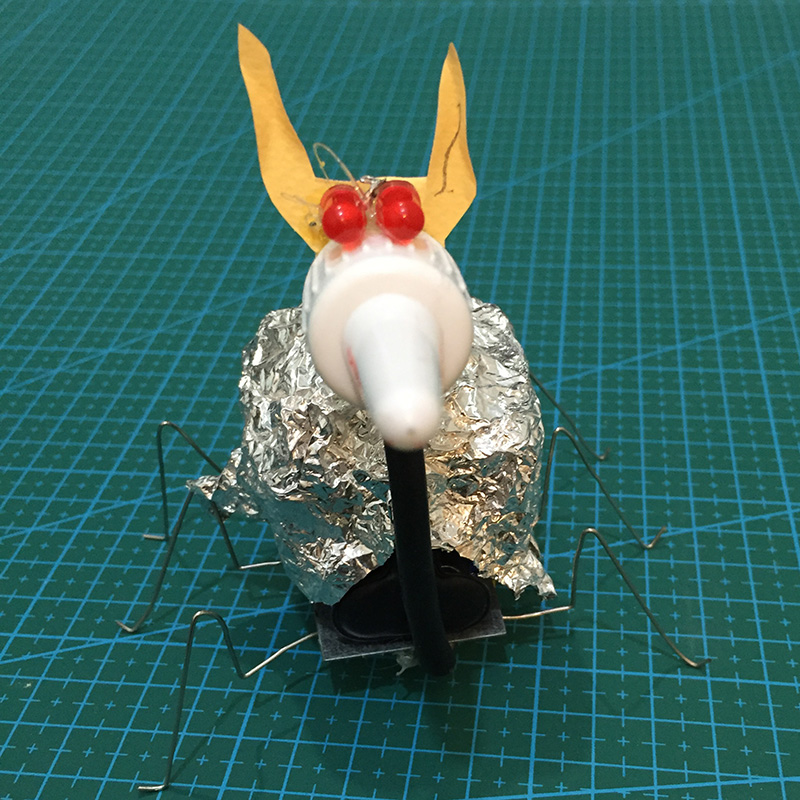

Finishing
complete the robot as you like
