Working Lego Technic Cross Bow (Inspired by the Mini Thriller)

by Duct-Tape-Master in Living > LEGO & K'NEX

4950 Views, 11 Favorites, 0 Comments

Working Lego Technic Cross Bow (Inspired by the Mini Thriller)

lego 9.JPG
lego 1.JPG
lego 2.JPG
lego 3.JPG
lego 4.JPG
lego 5.JPG
lego 6.JPG
lego 7.JPG
lego 8.JPG
lego 10.JPG

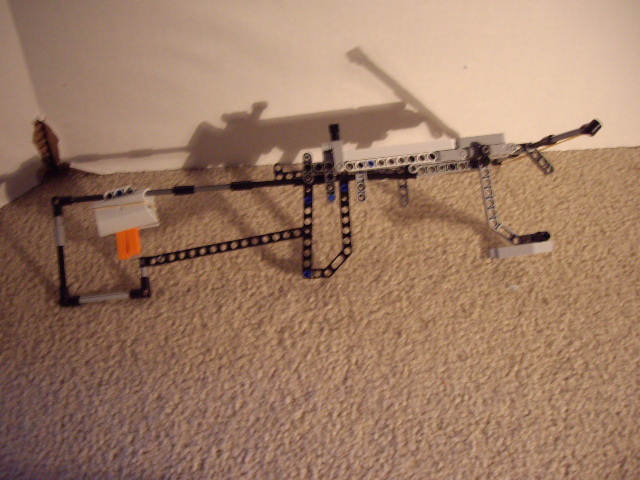

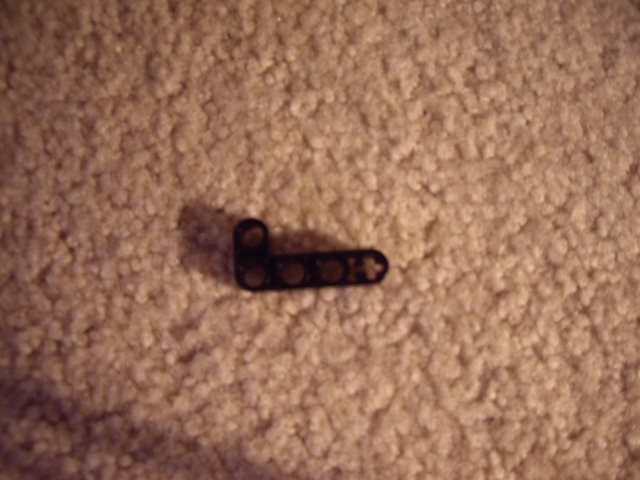

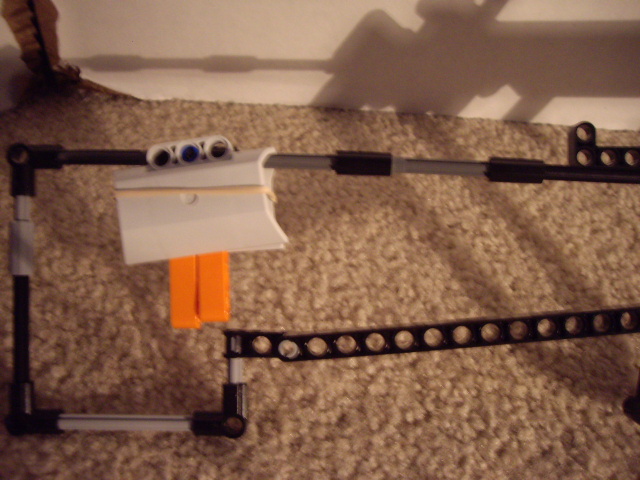

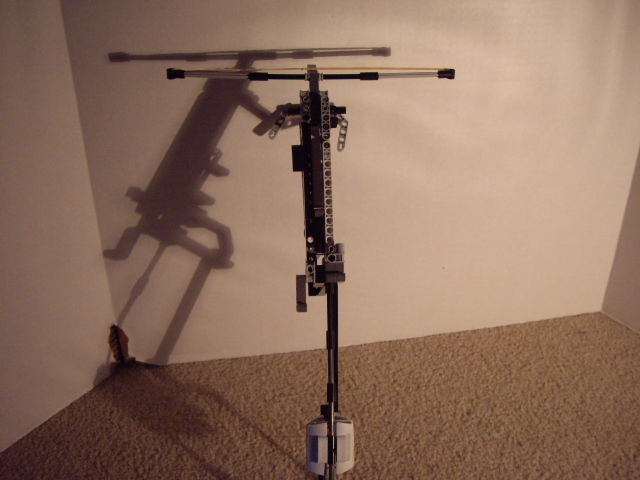

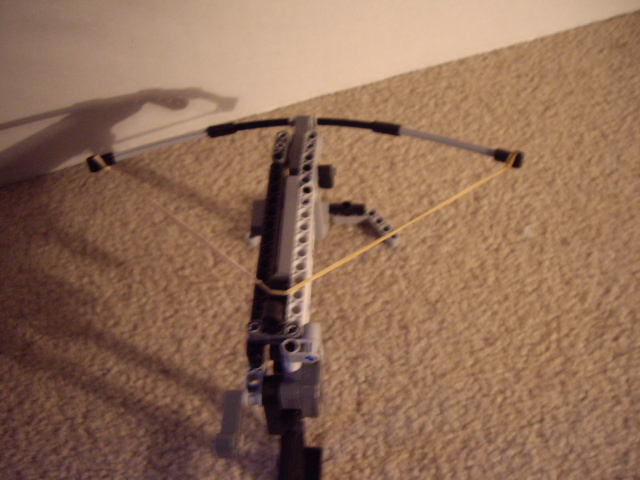

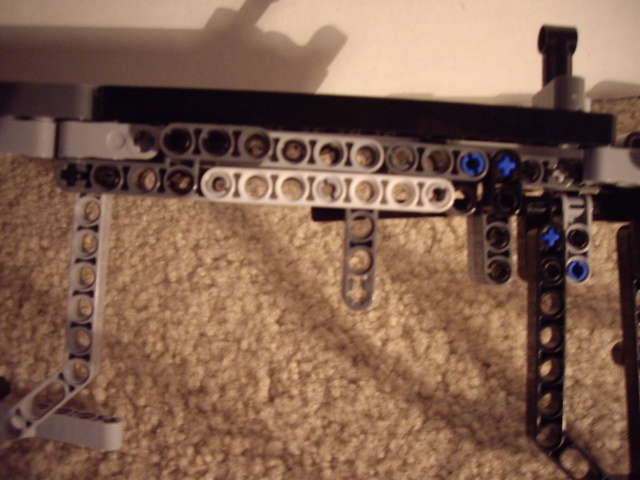

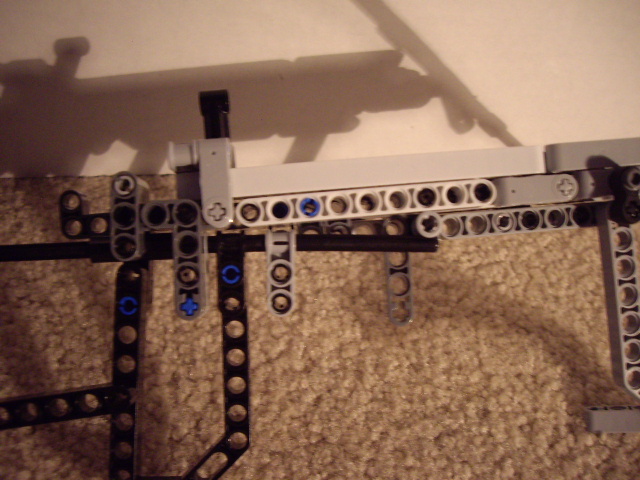

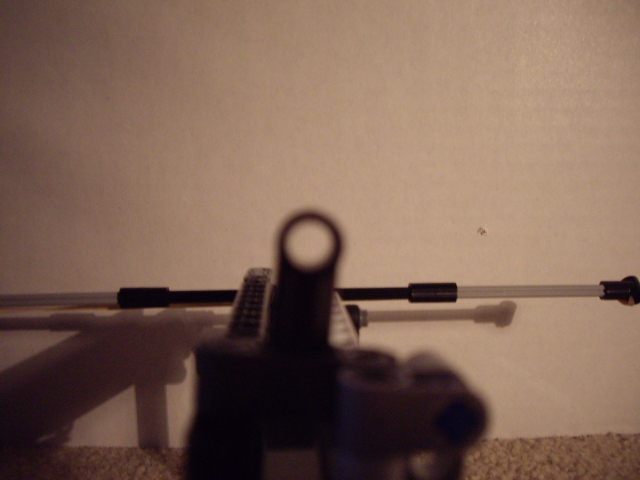

This was a quick project that I did while my friend was over who knew a lot about this stuff. It shoots one of those technic L shaped, 4 hole long pieces. It uses the same priniple as the Mini Thriller from Badass Lego Guns book by Martin Hudepohl;  the trigger (when pulled) causes a piece to move out of the way of a brick (ammo) that is being pulled forward by rubber bands attached to the "wings" of the gun. The gun has room for 3 extra bolts/ammo: 2 in a case thing on the stalk and one connected to a loose rod. It is pretty powerful for 1-2 hours of work (can blow apart a lego target-see video 2.) The bolts/ammo can vary but need to have a height of at least 2 pieces.
